Description

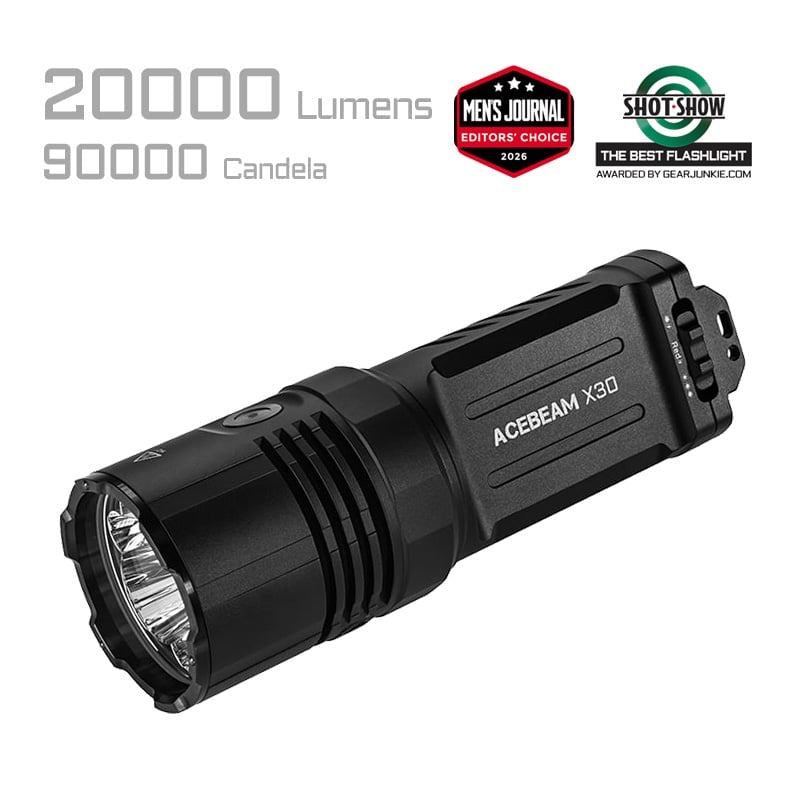

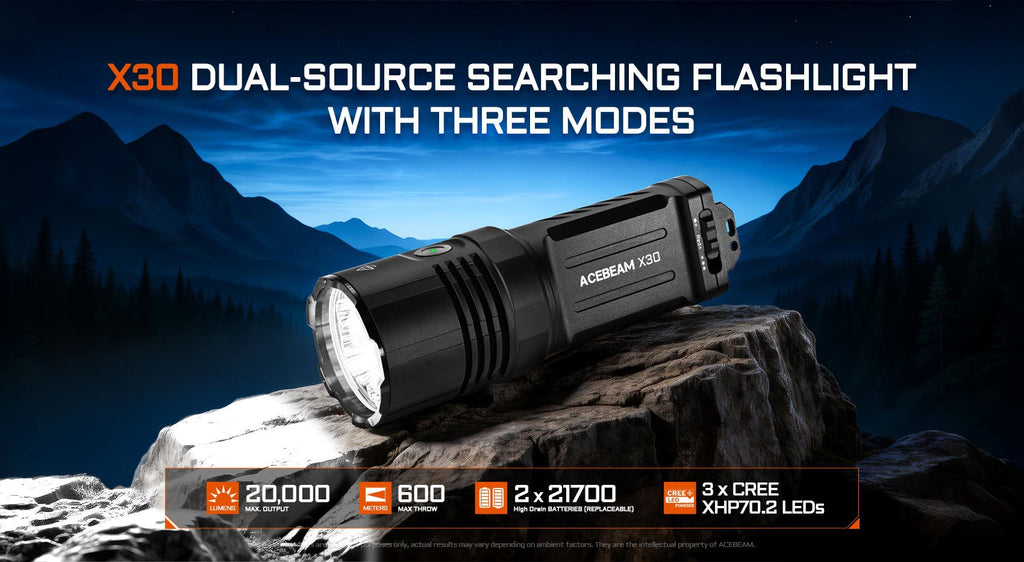

The Acebeam X30. Built for Search. Engineered for the Field.
The Acebeam X30 is a professional-grade dual-source search flashlight engineered for operators, first responders, and serious outdoor enthusiasts who demand versatile, high-output illumination in a single package. Three CREE XHP70.2 LEDs deliver 20,000 lumens of white light with a 600-meter beam distance, while a dedicated red light array preserves night vision and dark adaptation during extended field operations. Three distinct operating modes, a mechanical dual-switch lockout, and a strike bezel make the X30 one of the most tactically complete flashlights in its class.
20,000 Lumens. Three LEDs. One Precision Reflector.

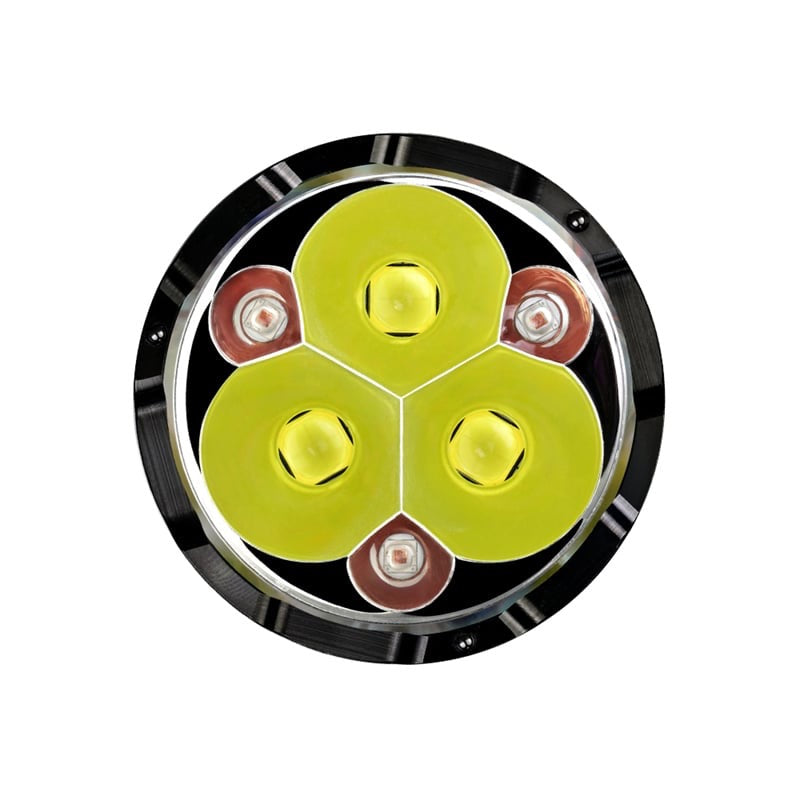

At the heart of the X30 are three CREE XHP70.2 LEDs operating at 6,500K — a high-performance, high-output emitter array capable of producing 20,000 lumens of peak white light output with a peak beam intensity of 90,000 candela and a verified throw distance of 600 meters. The X30's balanced circuit provides stable power output across the discharge cycle, sustaining higher brightness levels for longer than conventional direct-drive designs — a critical advantage during extended search operations.
Dual Light Sources. White & Red. Built for Real Operations.
The X30 is not a single-purpose light. Its dedicated red light array delivers up to 300 lumens of red output with runtimes stretching to 87 hours in Ultra Low — making it a serious tool for preserving night vision during observation, navigating camp without destroying dark adaptation, and operating in environments where white light would compromise your position or situational awareness.

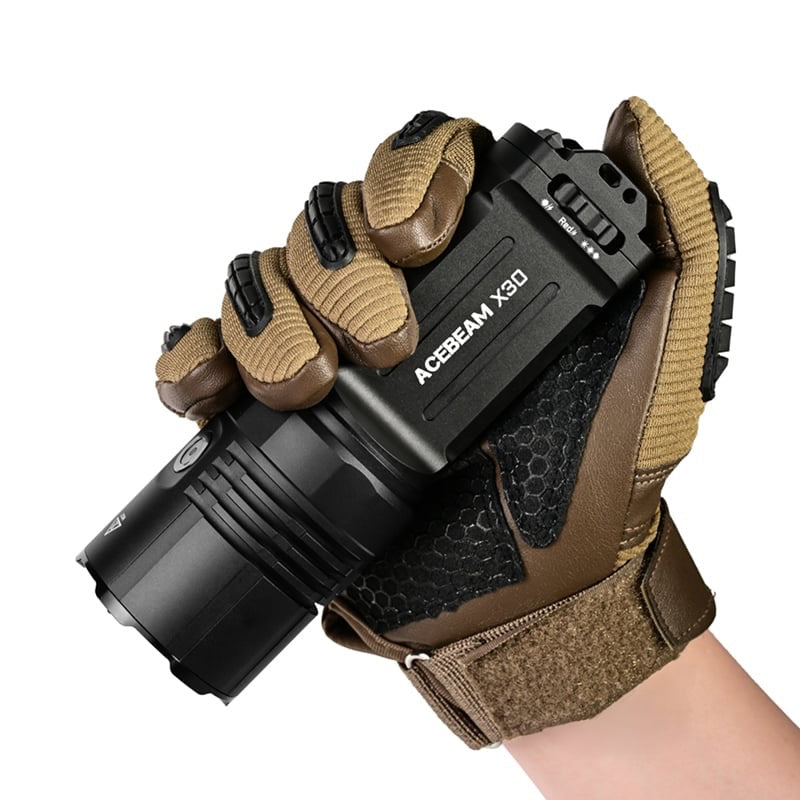

Switching between white light, red light, and operating modes is handled by a dedicated toggle switch — giving you precise, deliberate access to exactly the mode you need without cycling through unwanted outputs at a critical moment.
Three Modes. Total Operational Flexibility.
The X30 offers three distinct operating modes selected via the toggle switch:
- Tactical Mode — Instant access to maximum output via the tail switch. Designed for immediate high-output response in dynamic situations.
- Duty Mode — Smooth mode cycling for sustained operational use, patrol, and search applications where controlled output management matters.
- Red Light Mode — Full red light output control for night vision preservation, low-observable operations, and extended low-light navigation.

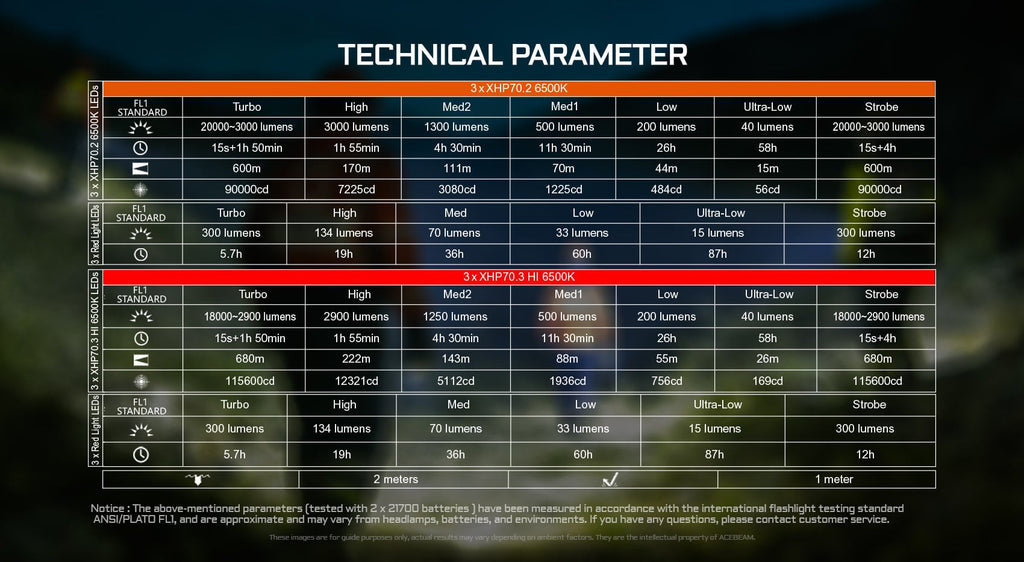

White Light Output Performance
| Mode | Lumens | Candela | Throw | Runtime |
|---|---|---|---|---|
| Ultra Low | 40 | 56 cd | 15m | 58 hours |
| Low | 200 | 484 cd | 44m | 26 hours |
| Med1 | 500 | 1,225 cd | 70m | 11.5 hours |
| Med2 | 1,300 | 3,080 cd | 111m | 4.5 hours |
| High | 3,000 | 7,225 cd | 170m | 1 hr 55 min |
| Turbo | 20,000 → 3,000 | 90,000 cd | 600m | 15 sec + 1 hr 50 min |
| Strobe | 20,000 → 3,000 | 90,000 cd | 600m | 15 sec + 4 hrs |
Red Light Output Performance
| Mode | Lumens | Runtime |
|---|---|---|
| Ultra Low | 15 | 87 hours |
| Low | 33 | 60 hours |
| Med | 70 | 36 hours |
| High | 134 | 19 hours |
| Turbo | 300 | 5.7 hours |
| Strobe | 300 | 12 hours |
All figures tested with included Acebeam 21700 5000mAh Tabless batteries. Results may vary by environment and testing standard.
Replaceable Tabless 21700 Batteries. Power When You Need It Most.
The X30 runs on two included Acebeam 21700 5,000mAh Tabless high-drain lithium-ion batteries — a full-tab cell design that improves electrical contact and power delivery efficiency compared to standard 21700 cells. When battery power is depleted in the field, the replaceable battery design means you can swap in fresh cells and be back to full output immediately — no waiting for a recharge. The hidden USB-C port handles in-light charging when time and power access allow, with a protective cover that guards against dirt, moisture, and dust during field use. The integrated battery indicator gives you a clear read on remaining charge at all times.
Strike Bezel. Mechanical Lockout. Purpose-Built Durability.
The X30's crenellated strike bezel is machined directly into the head — a decisive glass-breaking and self-defense tool that requires no additional hardware or accessories. When you need it, it is there.

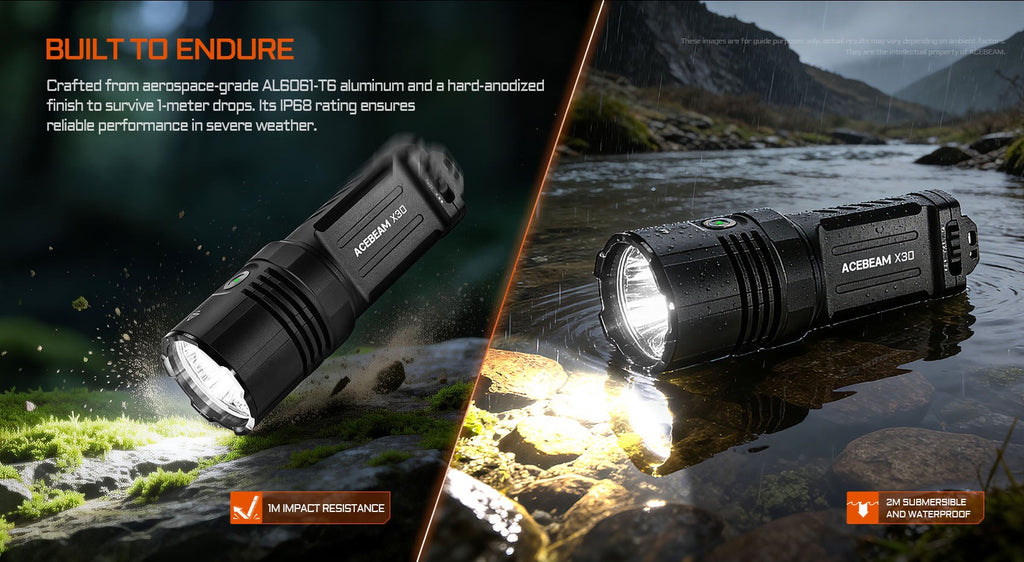

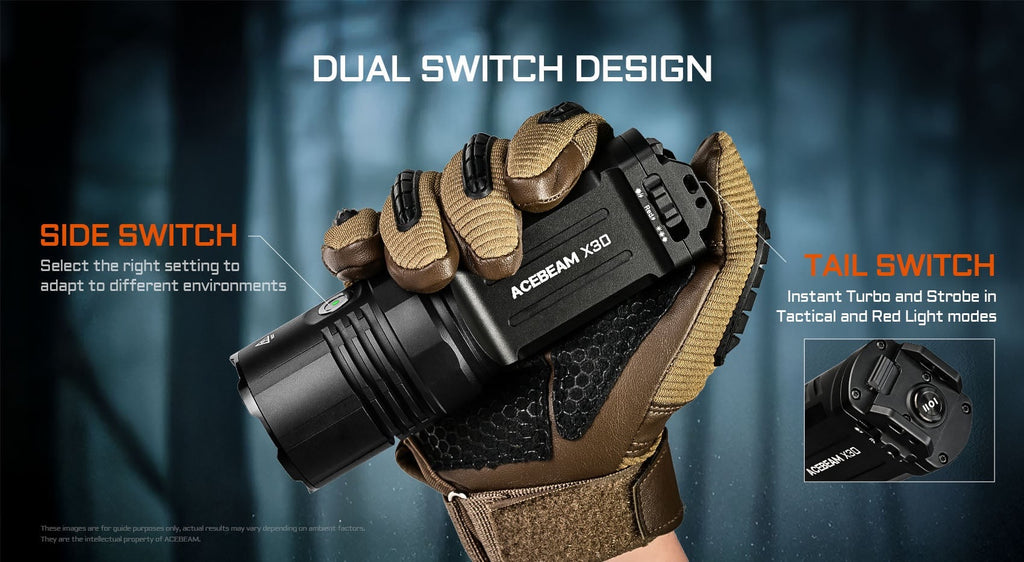

The mechanical dual-switch lockout prevents accidental activation in a pack, holster, or vehicle — with flashing light feedback confirming a successful lock or unlock so there is never any ambiguity about the light's state. The X30 is built from AL6061-T6 aerospace-grade aluminum with a hard-anodized finish, IP68 rated for full dust and waterproof protection, and impact-resistant to 1-meter drops.
Specifications
| Feature | Detail |
|---|---|
| LEDs | 3 x CREE XHP70.2, 6,500K |
| Max White Output | 20,000 lumens |
| Max Red Output | 300 lumens |
| Peak Beam Intensity | 90,000 candela |
| Max Throw | 600 meters |
| Max White Runtime | 58 hours |
| Max Red Runtime | 87 hours |
| Operating Modes | Tactical, Duty, Red Light |
| Batteries | 2 x Acebeam 21700 5,000mAh Tabless (included) |
| Charging | Hidden USB-C port |
| Lockout | Mechanical dual-switch lockout |
| Strike Bezel | Yes |
| Body Material | AL6061-T6 aerospace-grade aluminum |
| Finish | Hard anodized |
| Waterproofing | IP68 |
| Impact Resistance | 1 meter |
| Length | 159.7mm / 6.29" |
| Head Diameter | 52.5mm / 2.07" |
| Body Diameter | 46.8mm / 1.84" |
| Weight | 473.7g / 16.71oz (with batteries) |
| Included | 2x 21700 5000mAh Tabless batteries, USB-C cable, pocket clip |
Frequently Asked Questions
What is the difference between Tactical, Duty, and Red Light modes?
Tactical mode is optimized for immediate, maximum-output response — ideal for dynamic situations where you need full brightness instantly from the tail switch. Duty mode provides smooth mode cycling for sustained patrol, search, or operational use where deliberate output control matters. Red Light mode gives you full control over the dedicated red LED array for night vision preservation and low-observable operations. The toggle switch lets you select exactly the mode you need before deploying the light.
Why does the X30 use Tabless 21700 batteries?
Tabless — also called Full-Tab — 21700 cells use the entire end cap of the cell as an electrical contact rather than a small welded tab. This significantly reduces internal resistance and improves power delivery efficiency, which translates to more consistent output at high drive currents. For a light pulling the power levels required to sustain 20,000 lumens, Tabless cells are a meaningful performance upgrade over standard 21700s.
Can I replace the batteries in the field?
Yes — and this is one of the X30's most practical advantages. The replaceable battery design means that when your cells are depleted during an extended operation, you can swap in fresh 21700 batteries and return to full output immediately. Carrying a spare set of cells eliminates the downtime of waiting for a recharge when you are away from power. Add a spare battery set to your order before checking out.
How does the mechanical lockout work?
The X30's mechanical dual-switch lockout physically prevents the tail switch and side switch from activating, eliminating the risk of accidental discharge in a pack, holster, or vehicle. Engaging or disengaging the lockout triggers a flashing light confirmation so you always know with certainty whether the light is locked or ready to deploy.
What is the strike bezel used for?
The crenellated strike bezel is machined into the head of the X30 and serves as a glass-breaking tool and close-quarters self-defense aid. It requires no additional accessories or setup — it is part of the light itself and always available when needed.
Is the X30 waterproof enough for serious field use?
The X30 carries an IP68 waterproof rating — the highest available on a consumer flashlight — certifying it as fully dust-tight and submersible to 2 meters. It is built to handle rain, water crossings, and wet field conditions without hesitation. It is not rated for professional diving use.
How do I know when the batteries need recharging?
The integrated battery indicator displays remaining charge level at a glance. When the indicator signals low battery, recharge via the hidden USB-C port or swap in a fresh set of cells. We recommend keeping a spare set of Acebeam 21700 Tabless batteries on hand for extended operations — available separately in our store.
What is the MAP price?
The Acebeam X30 is priced at $209. Add it to your cart today or contact us if you have questions about compatibility or accessories.
